Magnetic Separators & Vibratory Feeders/Conveyors
Plate Magnet
> Protects against medium- and small-size contaminants. > Installed in chutes, spouts, and ducts and suspended over conveyors and screens. > Available in multiple designs; ceramic, rare earth, and extreme rare earth.
Round Pipe Separator
> Protects against medium and small > Size contaminants > Installed in chutes and spouts > Available in multiple designs; ceramic, rare earth, and Xtreme Rare Earth.
Hump Magnet
> Incorporates two plate magnets for improved separation. > Material falls on the first plate magnet and then redirects to the second magnet. > Various strengths available > Fits feed pipes up to 18" > Automatic cleaning option available > Installed in chutes and spouts
Deep Reach Magnet
> Low profile ideal for tight spaces > Xtreme rare earth magnet circuits are available to remove fine or weakly magnetic contaminants. > Easy-to-clean option available
Cartridge Magnet
> For pneumatically conveyed dry material > Flows around solid stainless-steel cone and over magnetic cartridge
Tube Magnet
> 1-inch diameter tubes > Ceramic and Rare Earth options > SS 316L construction > Customized to any length Capable of handling temperatures up to 200°C
Grates-in-Housing
> Staggered rows of grates in a custom housing > Greater opportunity to remove fine iron dust from free-flowing products > Available in ceramic and rare earth magnets. > Single or multiple bank designs are available.
Suspended Permanent Magnet
> Positioned over conveyors > Removes coarse ferrous from deep burdens

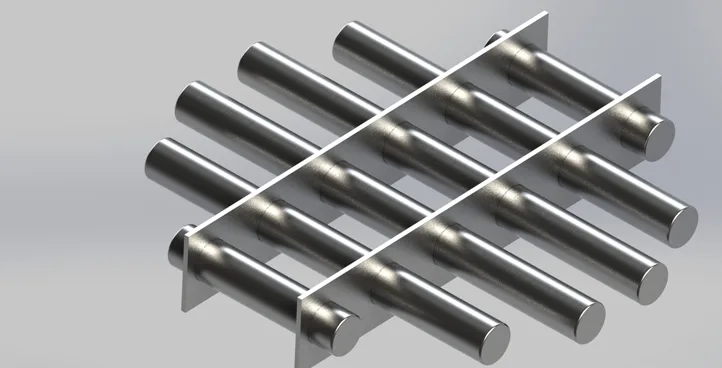

Grate Magnet
> Removes fine iron from dry, free-flowing products. > Fits square, round, oval, and odd-shaped hoppers/chutes > Available in ceramic and rare earth magnets Various sizes available.
Barrel Grate Magnet
> Removes fine iron from dry, free-flowing products. > Suitable for barrel application. > Single or multiple bank designs are available.
Bullet Magnet
> Stainless steel construction > Rare Earth magnetic element > Installed
Drum-In-Housing
> Designed to separate ferrous materials from free-flowing dry material > Automated self-cleaning operation > Many sizes and strengths are available.
Easy-To-Clean Grates-In-Housing
> Easy-to-clean design > Staggered rows of grates in a custom housing > Greater opportunity to remove fine iron dust from free-flowing products > Available in ceramic and rare earth magnets
DSC Grates-in-Housing
> Dust-tight model recommended for very fine products > Possible to convert it into automatic cleaning type > Staggered rows of grates in a custom housing > Greater opportunity to remove fine iron dust from free-flowing products
SB Ferrous Trap (Liquid Line)
> Removes scale, oxides, and iron contaminants in liquid and slurry lines > For use in 2 to 4" pipeline > Withstand pressure up to 10 bar (150 PSI). > Easy-to-clean option available > Available in ceramic and rare earth magnets
"T" Ferrous Trap (liquid line)
> Removes scale, oxides, and iron contaminants in liquid and slurry lines > For use in 6 to 18" pipeline > Bottom plug to drain sump > Withstand pressure up to 5 bar (75 PSI). > Available in ceramic and rare earth magnet
PM Grates-in-Housing
> Designed for the Plastic Industry Compact design > Staggered rows of grates in a custom housing > Greater opportunity to remove small iron particulates > Available in high-temperature Rare Earth magnet
Rota Grate Magnet
> Slowly rotating the tube circuit > Designed for non-free-flowing material particulates > Greater opportunity to remove small iron > Available in ceramic and rare earth magnets > Automatic cleaning option available
Rare Earth Roll Magnet
> Designed to separate very fine, weakly magnetic contaminants from products Automated self-cleaning operation > Available in Single, Double, and Triple Stages > Many sizes are available

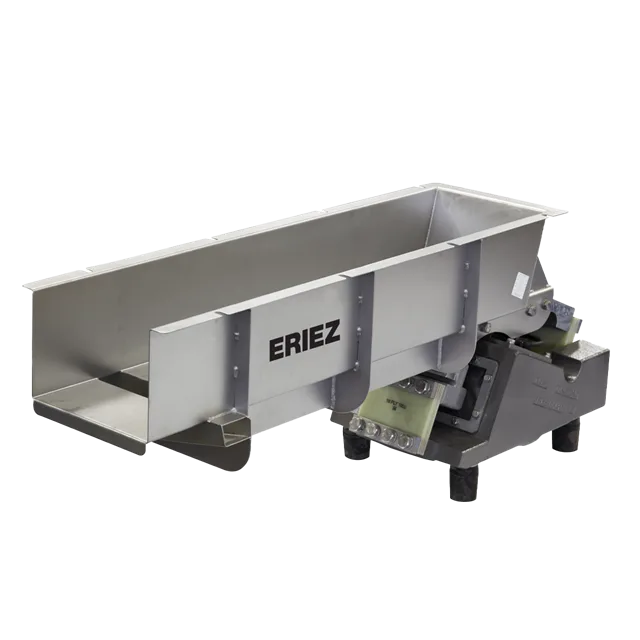

Compact vibratory feeder
> Low- to high-capacity models > Energy-efficient electromagnetic drives > Feeds light, bulk materials > Rapid on-off cycling, quick stopping > Ideal to use it for mixing, weighing, batching, and packaging operations > Superior handling of fine powder, sticky, and leafy-type products > Many tray design options: Screener, enclosed tray
